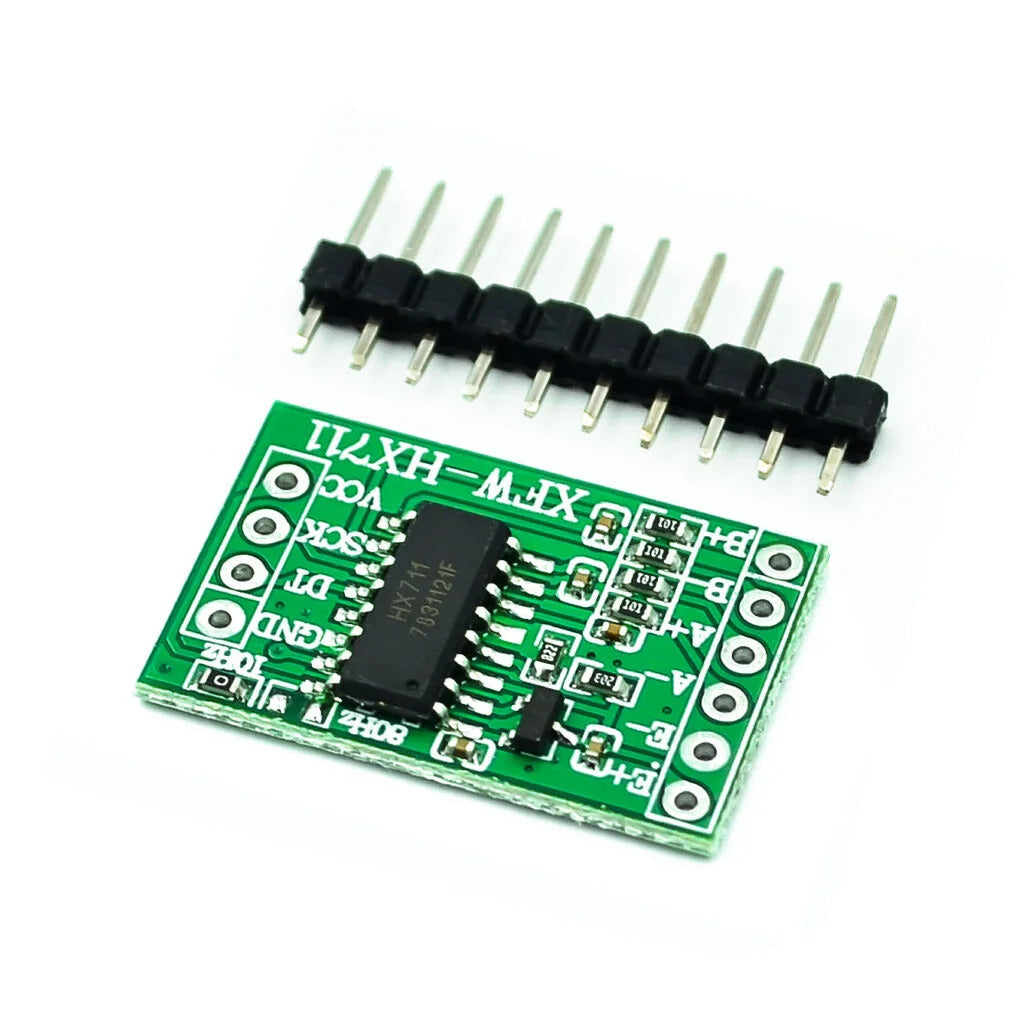

Load Cell Amplifier HX711
Load Cell Amplifier HX711
Regular price
£4.00 GBP
Regular price
Sale price
£4.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Differential Input Channels: Two selectable channels.
- Advanced PGA: On-chip active low noise PGA with selectable gains of 32, 64, and 128.
- Integrated Power Supply Regulator: Ensures consistent load-cell and ADC analogue power supply.
- Independent Oscillator: On-chip oscillator.
- Power-On-Reset: Integrated on-chip power-on-reset.
- Adjustable Data Rate: Choose between 10SPS or 80SPS output data rates based on your requirements.
- Superior Supply Rejection: Simultaneous rejection of both 50 and 60Hz supplies.
- Energy Efficient: Consumes less than 1.5mA during normal operation and goes below 1uA in power-down mode.
- Wide Operating Voltage Range: Functions within a voltage range of 2.6 to 5.5V.
- Durable Temperature Range: Operates between -20°C and +85°C.
